Beaglebone GREEN all-metal DIN-RAIL Case

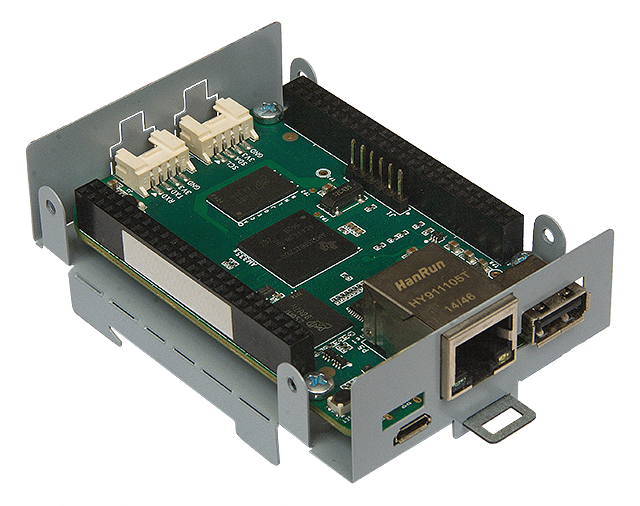

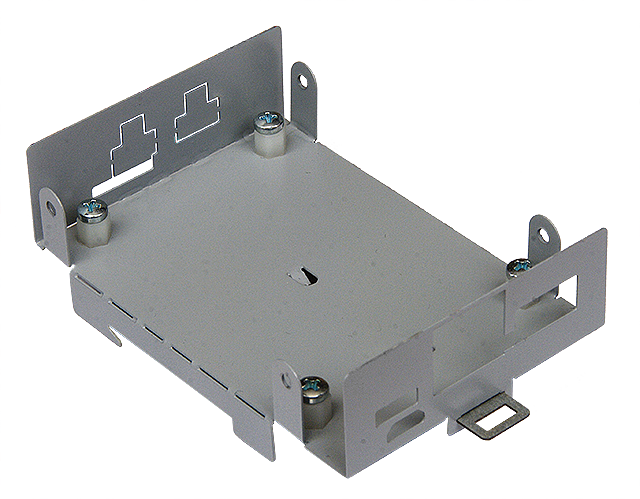

This case is designed for the the Beaglebone GREEN computer and is intended to be fixed to a DIN rail together with other standard automation equipment. Supported are both 7.5 mm and 15 mm EN 50022 DIN rails known also as Top hat section, Type O, Type Ω, or TS35. The case offers entirely-metal sturdy design intended to protect the Beaglebone which at the same time gives full and easy access to all outside connectors and LEDs. Internal headers are accessible only when the case cover is removed. The back wall has cuts forming push-out panels which if needed can create openings for the Grove connectors. If not used these cuts are almost indiscernible above the memory card slot. Memory cards can be changed without hassle thanks to that dedicated opening. The Beaglebone is attached by using included M3 screws. Case cover is also attached using M3 screws and can be removed in seconds even while the case is fixed in its place. The case has powder coating finish.

  • Make it outstanding by adding color! Check our color chart. No minimum quantity.

  • Add branding such as company logo! Read more about branding.

  • Have specific needs? Want to accommodate a cape? Let us know – we offer OEM and custom designs!

  • No proper cape or custom board is needed? We have the answer! We offer OEM and custom electronics!

SPECIFICATIONS & FEATURES

Mount(1) EN 50022 DIN rails
7.5 mm and 15 mm
Material Steel
Finish Powder coating
Size 61.4 x 22.7 x 92.5 mm
(2.42 x 0.89 x 3.64 in)
Size including mount 61.4 x 32 x 92.5 mm
(2.42 x 1.26 x 3.64 in)
Weight 78 g
Accessible connectors LAN, USB, Grove
Beglebone models(2) GREEN
Beglebone attached by M3 screws x 4
LEDs visible ALL
Memory card accessible Yes
Intended use Indoor only
Color:
Color:
Color:

3D CAD Rendering
Notes: 1.

This case is suitable for EN 50022 rails - both 7.5 mm and 15 mm, known also as Top hat section, Type O, Type Ω, or TS35;

This case is NOT suitable for C section rails known also as C-type, or C20, C30, C40, C50, and G section rails known also as G-type, or EN 50035, BG 5825, and DIN 46277-1;


2.

This case is NOT suitable for Beaglebone (White), Beaglebone Black and Beaglebone Wireless;
3.

As the case metal is thin please be careful when inserting cover screws and do not overtighten them;
4.

When attaching the Beaglebone GREEN please insert the Ethernet and USB connectors first – see instructions;
5.

When attaching entire assembly to the DIN rail please attach the rear hook first, then pull the DIN rail lock until it stops, press the case against the DIN rail, and release the lock. Do not attach to the DIN rail by simply pressing entire assembly against the rail until it clicks in place – see instructions;
6.

Do not use solvents for cleaning the case as this can damage the paint finish, use wet cloth instead;
7.

Indoor use only!
8.

Color rendition may depend on monitor, camera settings and lighting, please refer to the RAL chart to get a review of the color. Different colors and further customization/brading are possible by request. More on branding here;
9.

Beaglebone GREEN is not included!

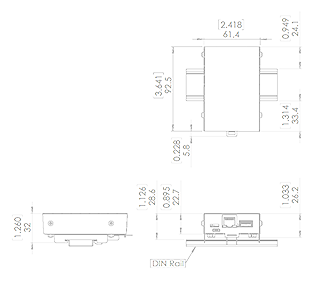

Case Dimensions
