SBAT90USB162 Atmel® AT90USB162 Development Board

One of today's most widely used MCUs offering native USB support is the Atmel® AT90USB162. It provides an easy way to add USB functionality to any new design along with hundreds of different projects that are available.

The SBAT90USB162 is an Atmel® AT90USB162 development board. This board is a cost-effective yet feature-rich, highly compatible, flexible and easily configurable development tool, designed to give a quick start to develop code and for hardware prototyping and testing. It is a clean in design solution, but still providing configurability and flexibility not available with other products. The board provides all the basic circuitry needed to work with AT90USB162: USB connector and circuit, crystal, Reset and HWB buttons, power LED, power source/voltage configuration circuitry, ISP header.

The board offers flexible power configurable via jumpers: both 3.3 V and 5 V USB-powered or supplied from external supply.

Board design makes it compatible with other similar development boards featuring same or similar MCUs and virtually all design/development software and libraries/projects.

MCU comes pre-programmed with a bootloader allowing code to be programmed without any external programmer – simply by using FLIP software from Atmel. To enter the bootloader mode, the RST button should be pressed and hold, then the HWB button pressed and the RST button released.

An ISP programmer still can be used via dedicated ISP header, as well as debugger like JTAGICE via same header.

FEATURES

  • Flexible power – 3.3 V or 5 V from USB bus or external 3.0 V or 5.5 V;

  • All MCU I/O pins are accessible;

  • 100 mil extension headers for connection to universal or breadboards, or direct interfacing with other devices, providing access to all I/O pins and virtually all signals;

  • Mini USB connector – USB 2.0 full speed (12 Mbps) Device mode supported;

  • Dedicated headers for USB signals: D-, D+, VBUS;

  • Built-in 0.9..16 MHz crystal (default 8 MHz);

  • Internal or external clock;

  • Optional transient voltage suppression for USB data lines;

  • Reset (RST) button;

  • Hardware boot (HWB) button – allows bootloader (stock Atmel® or third-party) execution at reset (see DBAT90USB162 User's Manual and AT90USB162 datasheet) – allows MCU programming via USB without external programmer. I/O pin is still useable for other purposes;

  • ISP (6-pin) connector supporting in-circuit programming and debugging via debugWIRE.

COMPATIBILITY

As all MCU I/O pins are accessible and all MCU powering and clocking options are available the SBAT90USB162a is compatible with virtually every project and development tool designed for AT90USB162 and particularly for AVR MCUs.

SPECIFICATIONS

Processor

AT90USB162

Flash memory

16 kBytes (10,000 write cycles)

Max. clock frequency

8 MHz at 2.7 V, 16 MHz at 4.5 V

RAM

512 Bytes (static)

EEPROM

512 Bytes (100,000 write cycles)

USB

USB 2.0 full speed (12 Mbps) Device mode

USB DPRAM

176 Bytes

I/O lines

22

Timers

1 8-bit, 1 16-bit

PWM channels

5

USART

1

SPI port

1

Programming

Via USB and hardware-initiated bootloader or ISP connector

Debugging

Via debugWIRE interface (ISP connector)

Operating voltage

2.7 V to 5.5 V

Operating temperature

Industrial -40°C to +85°C

Board dimensions

38 x 38 x 14 mm (1.5 x 1.5 x 0.5 in) FR-4 1.5 mm

Weight

8.25 g

DOWNLOADS

User's Manual

Schematic diagram

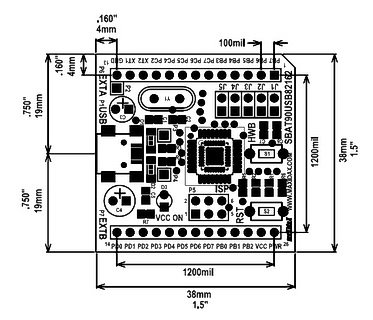

Board dimensions and layout
